• Paint scheme, solid, upper color, Summit White
• Paint scheme, solid, lower color, Summit White
• Exterior roof drip moldings
• Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent

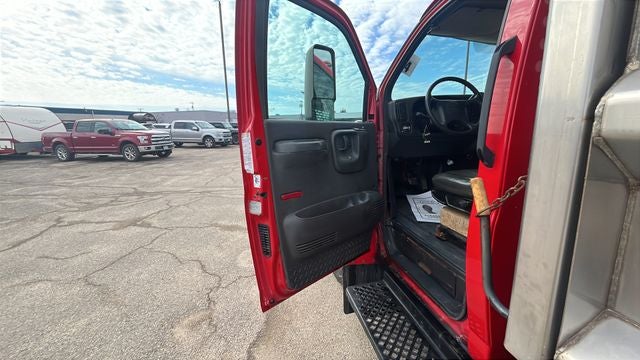

• Steps under cab doors
• Front mud flaps
• Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
• Roof marker lamps
• Daytime running lamps
• Windows, Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
• Mirrors, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
• Windshield wipers, 2-speed and intermittent, with pulse washers
• Provisions for mounting front license plate
• Positive door stops

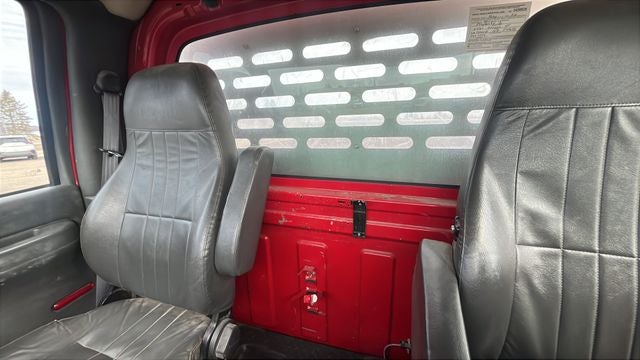

• Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out

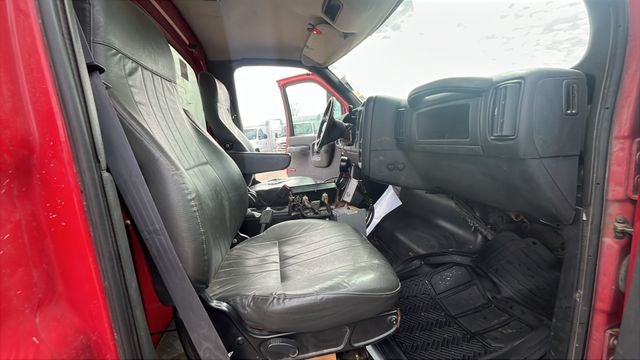

• Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
• Seat trim, vinyl, Very Dark Pewter
• Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)

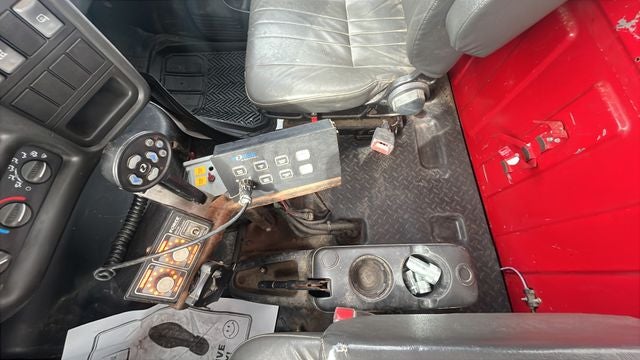

• Trim console - located next to driver's seat, and two cupholder
• Molded vinyl floor covering

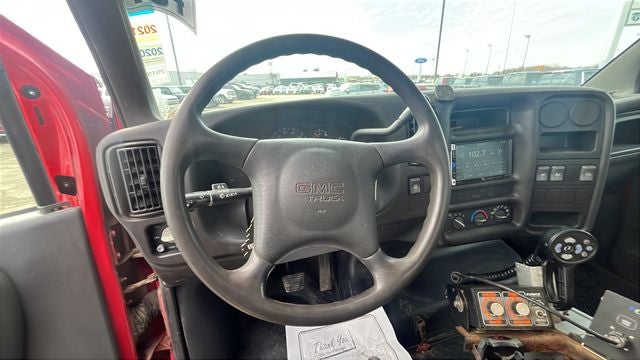

• Steering wheel 16"
• Two sided single common key for doors and ignition
• Headlamp warning buzzer
• Warning tone, key-in-ignition

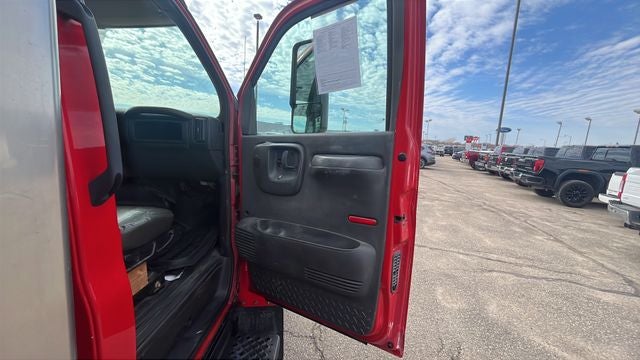

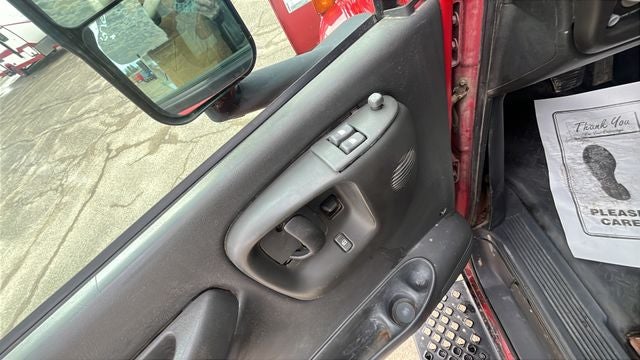

• Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
• Stepwell storage areas at each door front and rear. Includes storage cover.

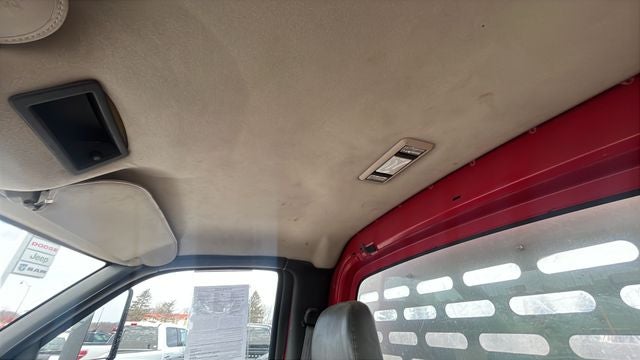

• Cloth headliner
• Sunshades, passenger side and driver side, cloth-covered
• Coat hooks (2) located on cab back panel

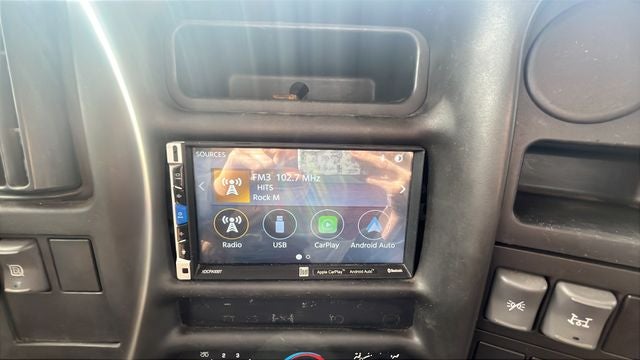

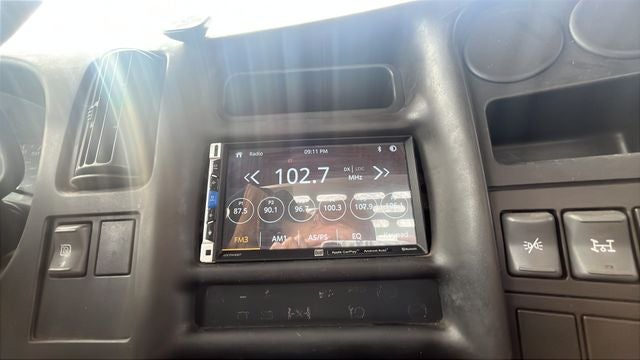

• Provisions for stereo - Includes AM/FM antenna, lead wiring for speakers, and separate door chime module, (N/A with ZQ2 driver convenience package)
• Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
• Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
• Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits

• 4-wheel disc, 4-channel ABS
• Air bags, Supplemental Inflatable Restraints not included. This vehicle does not include any air bags
• Seat belt warning indicator
• Daytime running lamps

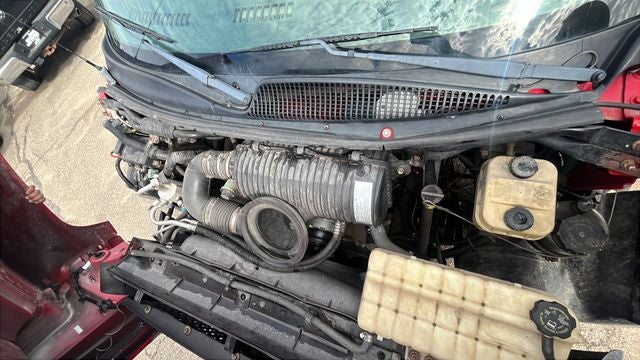

VORTEC 8.1L MD GASOLINE V8, 325 HP (239 KW) @ 4000 RPM AND 450 LB-FT TORQUE (610 N-M) @ 2800 RPM.

• Oil Level Sensor: Warning sensor for low oil levels (STD)

• Vehicle
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 27.3
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 13500
• Curb Weight - Front (lbs): 4470.8
• Curb Weight - Rear (lbs): 2611.2
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Combined Wt Rating (lbs): 60000
• Suspension
• Suspension Type - Front: Tapered Leaf
• Suspension Type - Rear: Tapered Leaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 13500
• Axle Type - Front: Reverse I Beam
• Axle Type - Rear: Single Speed
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 13500
• Axle Ratio (:1) - Rear: 4.78
• Shock Absorber Diameter - Front (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.5
• Brakes
• Brake Type: Pwr 2 Piston
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
• Tires
• Front Tire Order Code: XTN
• Rear Tire Order Code: YTN
• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 7280
• Rear Tire Capacity (lbs): 13660
• Revolutions/Mile @ 45 mph - Front: 646
• Revolutions/Mile @ 45 mph - Rear: 623
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1

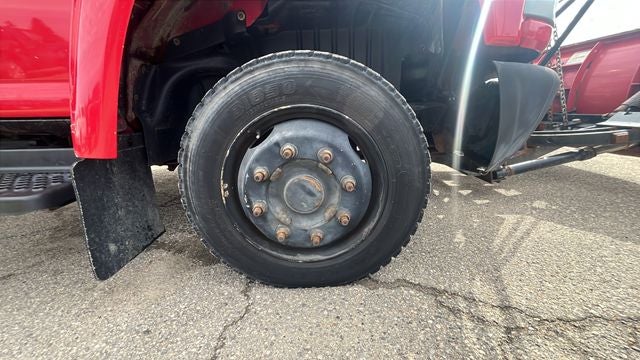

• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): 5.60
• Rear Wheel Offset (mm): 5.60
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Wheel Description Cont.: Hub Piloted
• Rear Wheel Description Cont.: Hub Piloted
• Front Bolt Pattern: 8stud/275mm
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: 19.6
• Frame
• Frame Type: Ladder-Type
• Sect Modulus Rails Only (in³): 7.63
• Frame RBM (N/A): 610400
• Frame Strength (lbs): 80000
• Frame Thickness (in): 0.24
• Fuel Tank
• Fuel Tank Location: LH
• Exterior Dimensions
• Length, Overall w/o rear bumper (in): 205.5
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 89.4
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 74.7
• Front Bumper to Back of Cab (in): 105
• Frame Width, Rear (in): 2.84
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 41.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 66.8
• Front Hip Room (in): 63.8
• Summary

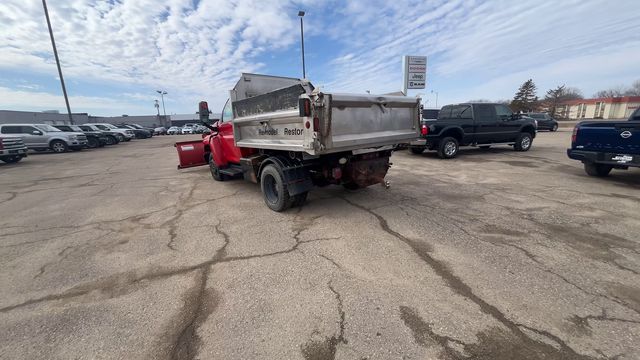

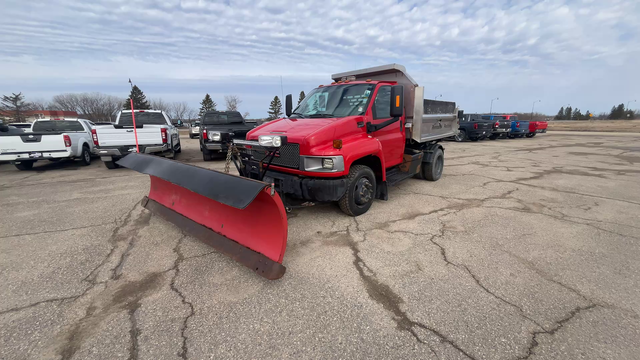

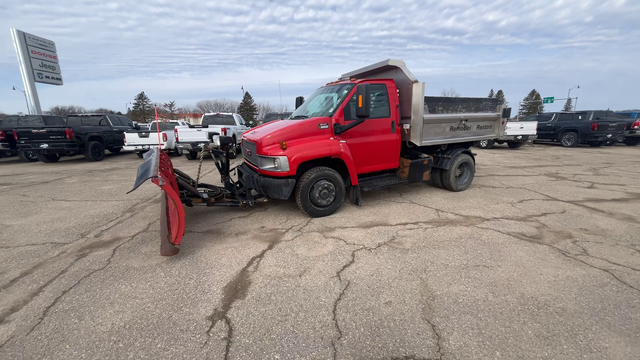

• Vehicle Name: GMC TC5500
• Body Style: Regular Chassis Cab 2WD
• Medium Duty Performance
• Driver Ratio: 0.75
• Torque @ Clutch Engage (ft-lbs): 332
• Torque Converter: 2.05
• Static Loaded Radius (in): 17.2
• Max Speed For Gradeability: 75
